Description

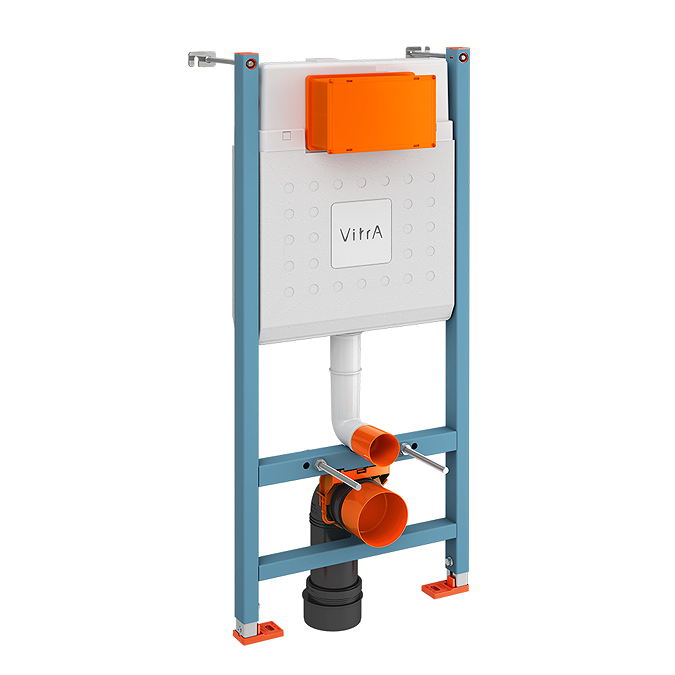

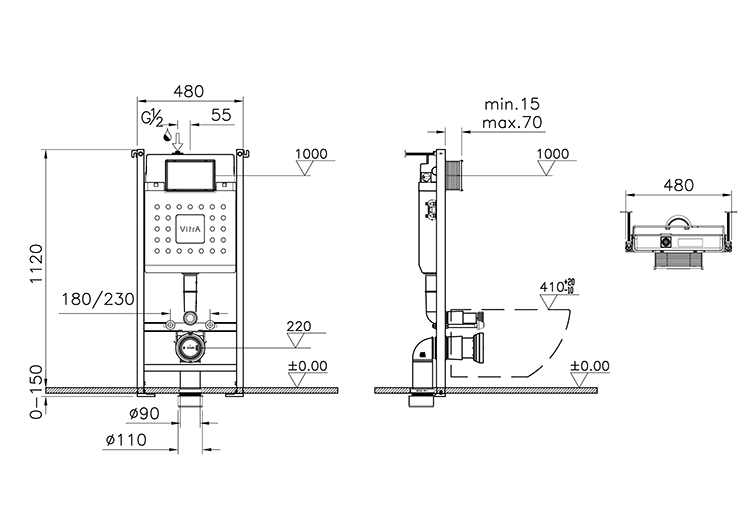

Toilet Frame Details
- Height: 1120mm
- Width: 480mm
- Wall mounted
- Concealed
- Recommended Pressure: 1-5 Bar
- For wall hung toilets
- Durable frame – 40x30mm
- Three water inlets – left, top and back
- Laser markings to show 1m level
- Flush plate cover marks the stud wall for ease of cutting
- Additional styrofoam to limit noise
- Flush valve can be set from 2.5/4L to 3/6L
- Clamp to secure the waste pipe in place
- Turnable plastic feet
- WRAS approved
- 10 Year Guarantee

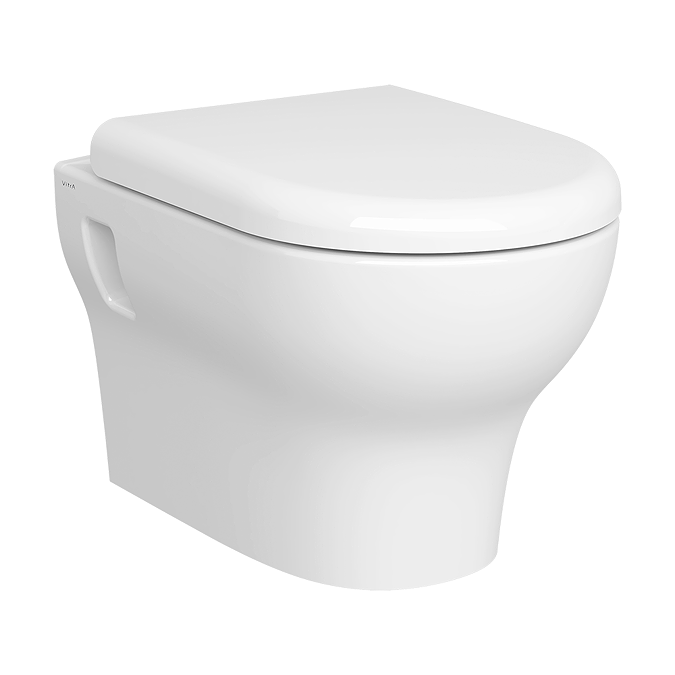

Wall Hung Toilet Details
- Width: 355mm
- Height: 400mm
- Projection: 520mm
- Colour/Finish: White
- Style: Modern
- Type: Wall Hung
- Pan Material: Vitreous China
- Flushing System: Rimless
- Horizontal waste outlet
- Inner Shape: Wash-down
- Designed for use with a concealed cistern frames (not included)
- SmoothFlush Rim
- Open fixings
- Standard or Soft close Seat options
- 10 Year Guarantee (Seat 2 Years)

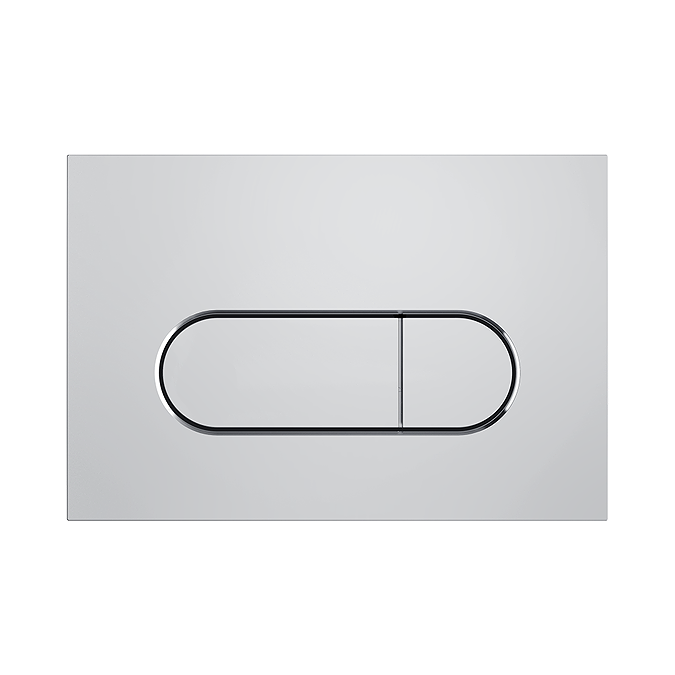

Flush Plate Details
- Height: 165mm
- Width: 244mm
- Depth: 9mm
- Dual flush operated
- Durable Chrome finish
- Stylish round design
- Compatible with VitrA cisterns and frames
- 5 Year Guarantee
All measurements are approximate
Images are for illustrative purposes only.
