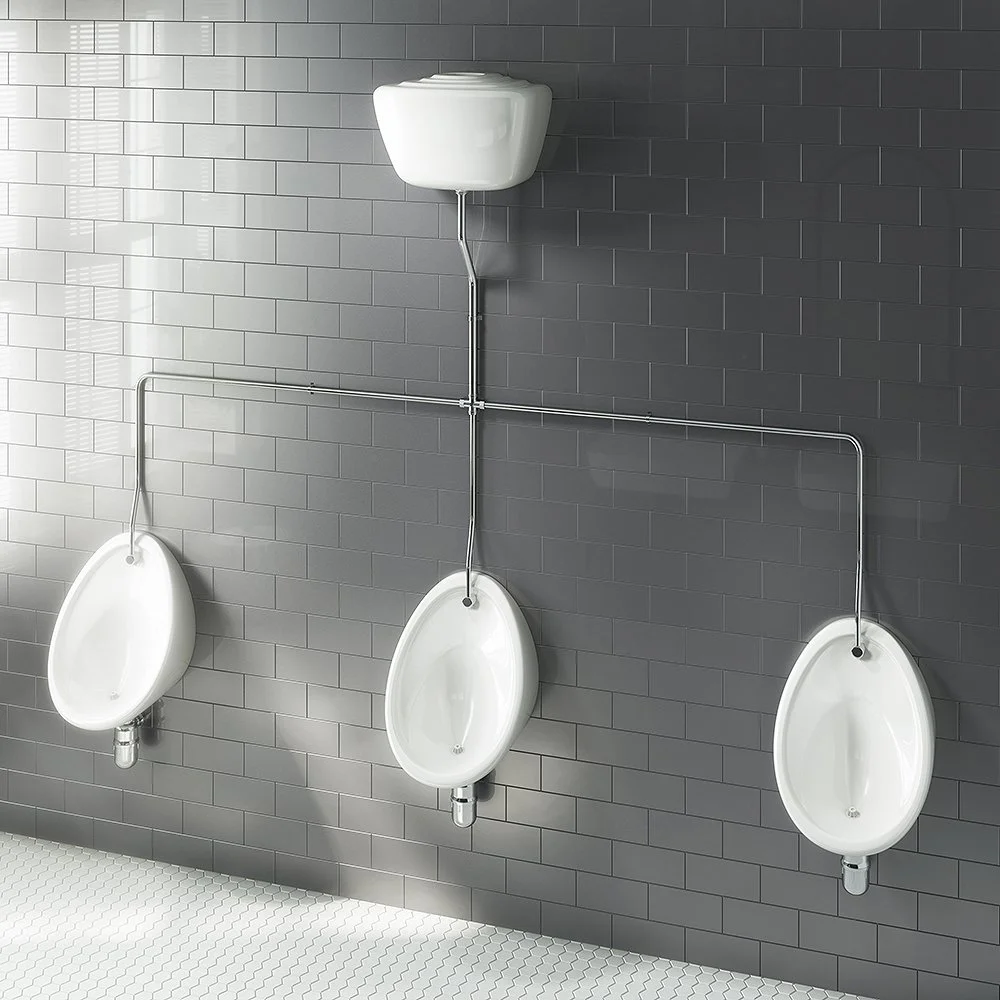

Cove Exposed Urinal Pack with 3 x 500mm Urinal Bowls + Ceramic Cistern
A complete exposed urinal pack consisting of three 500mm urinal bowls and an exposed 13.5 litre ceramic cistern with all the fittings required. This Cove complete auto flushing urinal pack is the perfect choice for all commercial installations.
£379.95
CompareDescription
- Urinal bowl and cistern manufactured from Vitreous China
- Colour/Finish: Gloss White
- 13.5 litre urinal flushing capacity
- Outlet centre 136mm from wall
- Urinal Bowl Dimensions: (W)380 x (H)500 x (D)302mm
- Cistern Dimensions: (W)455 x (H)320 x (D)275mm
- Supplied with white plastic fixed dome top waste, cistern/urinal brackets, adjustable flow control petcock and WRAS approved automatic syphon
- Stainless Steel Sparge set includes brackets and fixings (Top pipework is 22mm, reducing to 15mm in bowls, 90mm Cistern Offset / 23mm Bowl Offset)
- Wall mounted
- For exposed installation
All measurements are approximate
Images are for illustrative purposes only
Bottle trap sold separately
Guarantee: 5 Year (Flushing mechanisms guaranteed for 1 year)

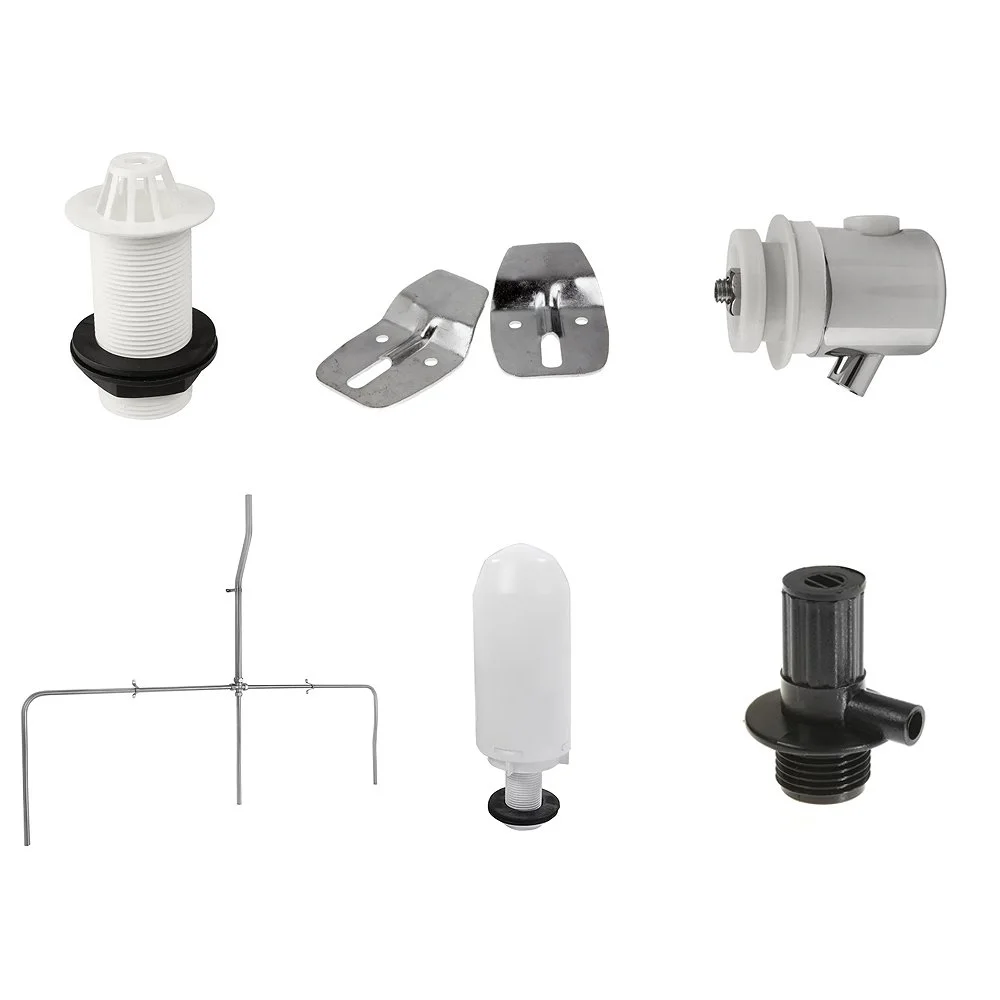

Pack Includes:

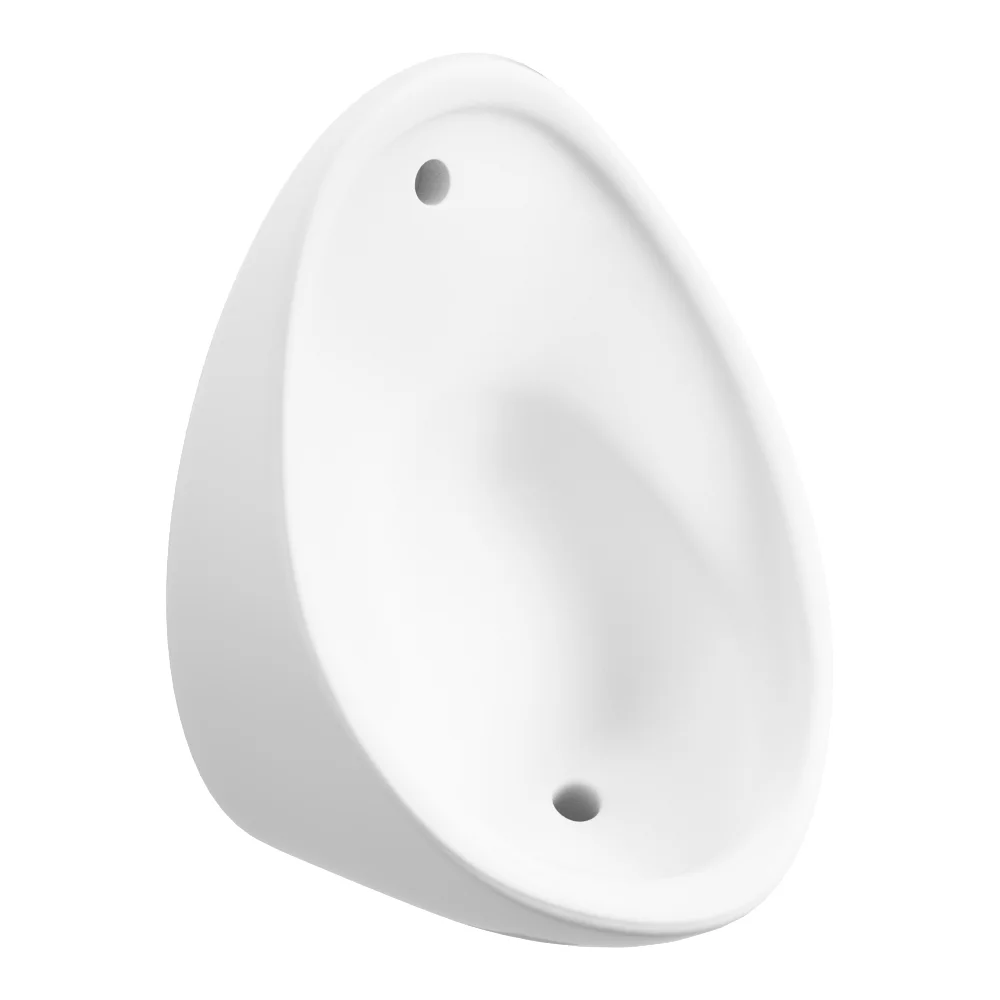

(3) Cove 500mm Urinal
(4) Urinal/Cistern Hanging Brackets – Pair
(3) 1.5″ Plastic Urinal Waste – Short Tail
(3) Urinal Spreader Top Inlet Chrome
(1) Stainless Steel Urinal Sparge Pipe Set – 3 Person

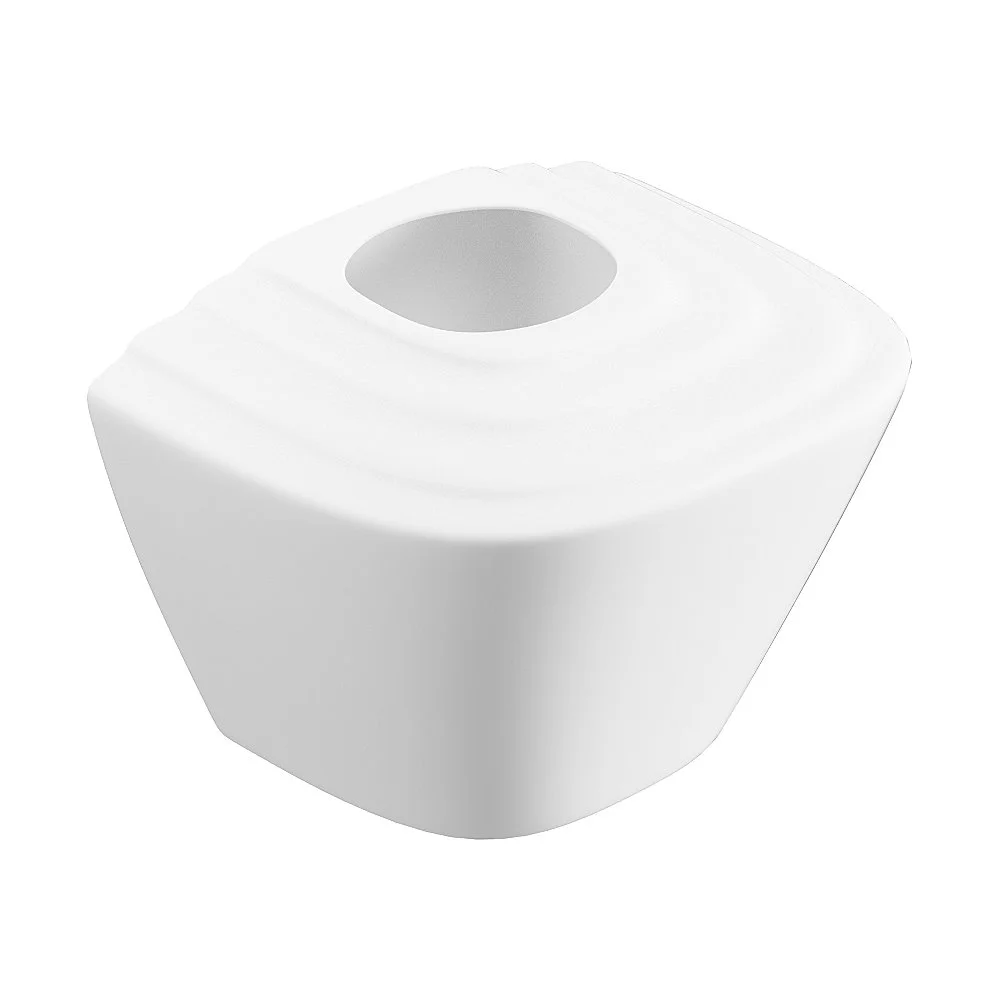

(1) Cove Ceramic Auto Cistern Large
(1) Autosyphon 1″ 13.5 Litre (WRAS approved)
(1) 1/2″ BSP Adjustable Flow Plastic Petcock
