Cove Exposed Urinal Pack with 2 x 400mm Urinal Bowls + Plastic Cistern

• Urinal bowl manufactured from vitreous china
• Cistern body manufactured in high impact polystyrene
• Colour/Finish: Gloss White
• 9 litre urinal flushing capacity
• Urinal Bowl Dimensions: (W)300 x (H)400 x (D)245mm
• Urinal outlet centre 95mm from wall
• Cistern Dimensions: (W)498 x (H)295 x (D)186mm
• Cistern outlet centre 93mm from wall
• Cistern comes with automatic syphon and petcock
• Supplied with white plastic fixed dome top waste, urinal brackets, petcock and automatic syphon
• Stainless Steel Sparge set includes brackets and fixings (Top pipework is 22mm, reducing to 15mm in bowls, 90mm Cistern Offset / 23mm Bowl Offset)
• Wall mounted
• For exposed installation

All measurements are approximate

Pack Includes:

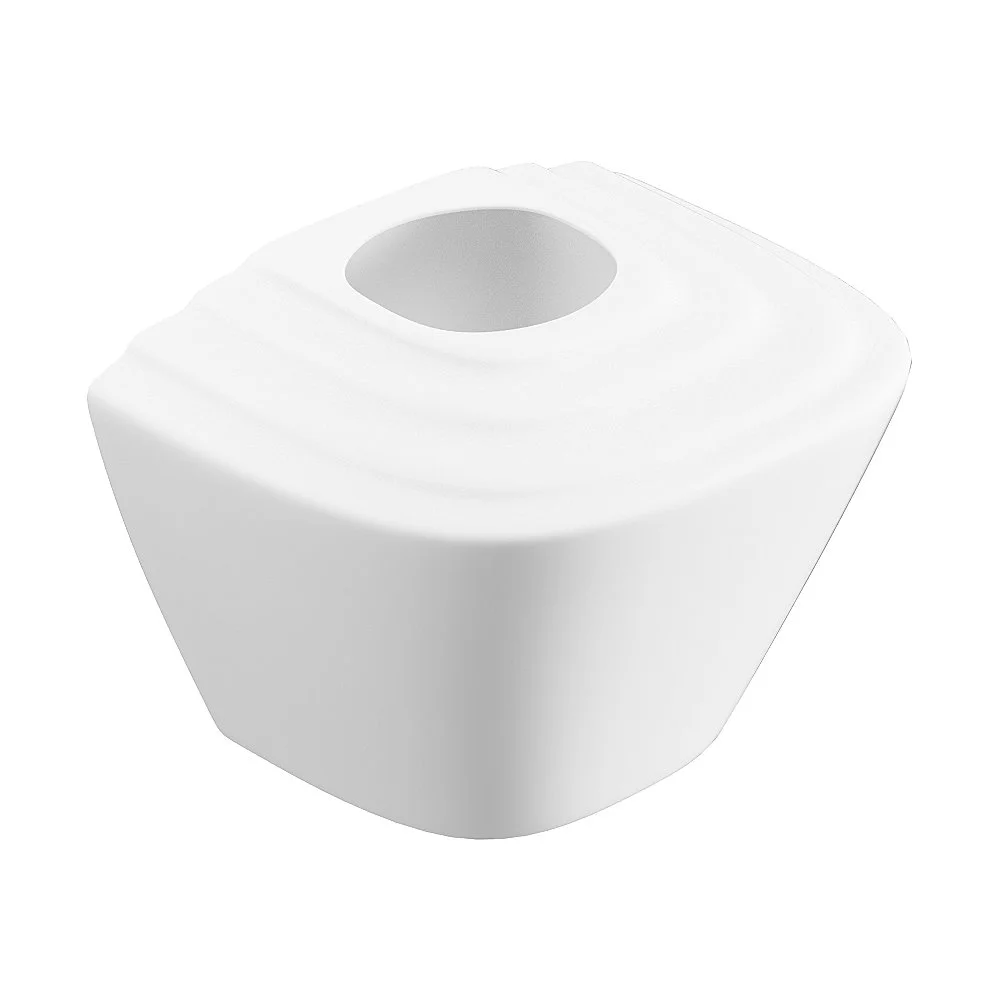

(2) Cove 400mm Urinal
(2) Urinal/Cistern Hanging Brackets – Pair
(2) 1.5″ Plastic Urinal Waste – Short Tail
(2) Urinal Spreader Top Inlet Chrome

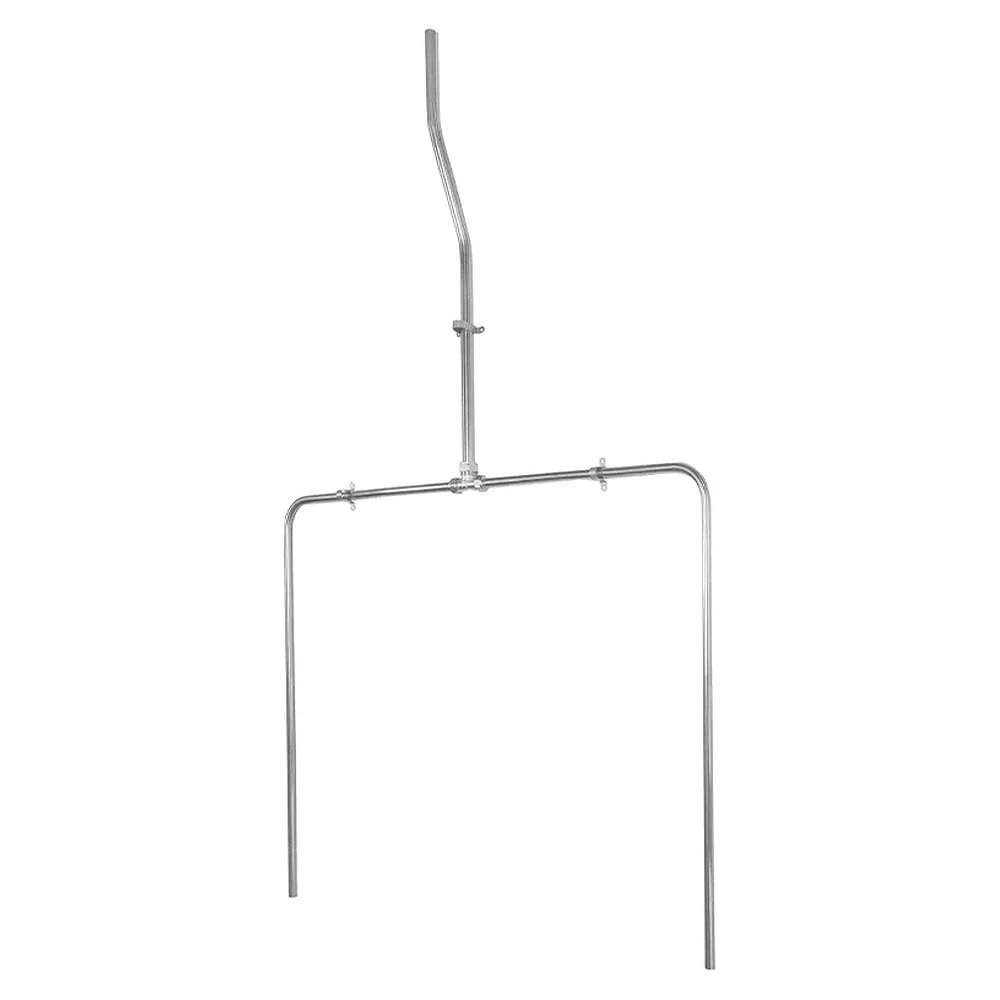

(1) Stainless Steel Urinal Sparge Pipe Set – 2 Person

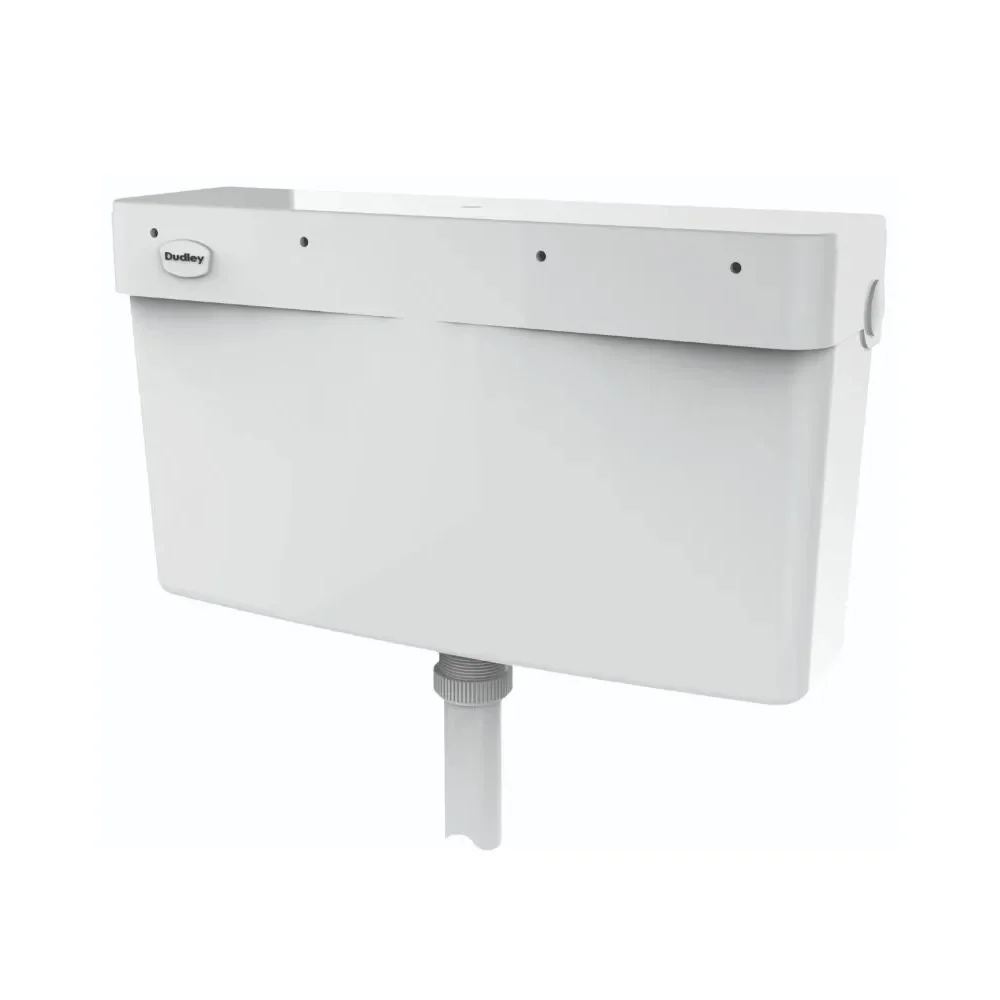

(1) Dudley ‘D’ Auto Plastic Cistern 9 Litre
