Cove Concealed Urinal Pack with 1 x 500mm Urinal Bowl + Plastic Cistern
A complete concealed urinal pack consisting of a single 500mm urinal bowl and an concealed 4.5 litre automatic plastic urinal cistern. This Cove complete auto flushing urinal pack is the perfect choice for all commercial installations.
£209.95
CompareDescription
Product Details
- Urinal bowl manufactured from vitreous china
- Cistern body manufactured in high impact polystyrene
- Colour/Finish: Gloss White
- 4.5 litre urinal flushing capacity
- Urinal Bowl Dimensions: (W)380 x (H)500 x (D)302mm
- Urinal outlet centre 136mm from wall
- Concealed Cistern Dimensions: (W)505 x (H)285 x (D)146mm
- Cistern outlet centre 73mm from wall
- Cistern comes with automatic syphon and petcock
- Supplied with white plastic fixed dome top waste, urinal brackets, petcock and automatic syphon
- Stainless Steel Sparge set includes brackets and fixings (Top pipework is 22mm, reducing to 15mm in bowls, 90mm Cistern Offset / 23mm Bowl Offset)
- Wall mounted
- For concealed installation
All measurements are approximate
Images are for illustrative purposes only
Bottle trap sold separately
Guarantee: 5 Year (Flushing mechanisms guaranteed for 1 year)
Pack Includes:
(1) Cove 500mm Urinal
(1) Urinal/Cistern Hanging Brackets – Pair
(1) 1.5″ Plastic Urinal Waste – Short Tail
(1) Urinal Spreader Back Inlet Chrome
(1) Stainless Steel Urinal Sparge Pipe Set – 1 Person

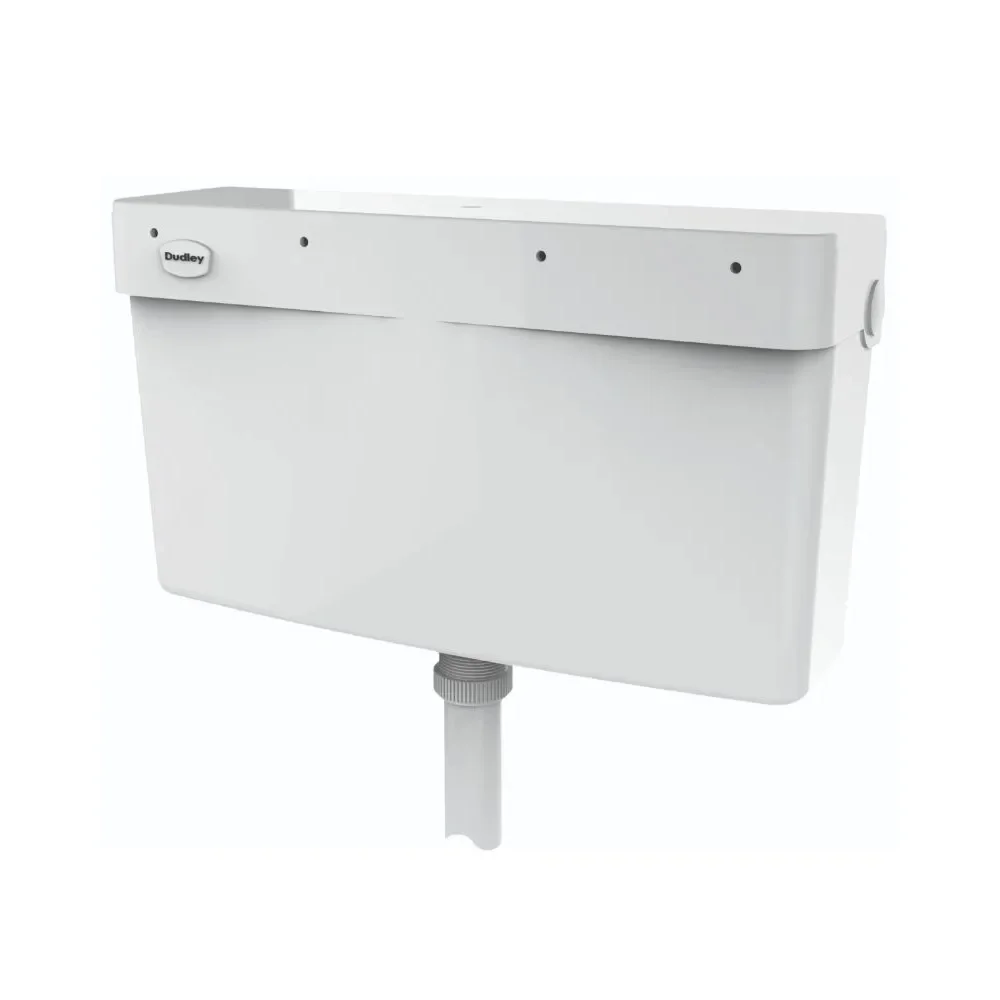

(1) Dudley Mirage Auto Cistern 4.5 Litre – For Concealed Installation
